MEMSIC MXC3500 – Flagship IoT Accelerometer Enables Ultra-Compact Smart Ring Design with Ultra-Thin Form Factor, Ultra-Low Power and Large FIFO

In recent years, global wearable devices have evolved steadily from “digital accessories” to “health monitoring terminals”. During this transition, deep integration of PPG and ECG technologies, coupled with advances in AI algorithms and IoT ecosystems, has driven a qualitative leap in user experience for wearable products. While PPG and ECG form the core of user experience, accelerometers are indispensable for the accuracy of their fusion algorithms. Accelerometer performance also largely dictates battery life for wearables.

A popular bestselling smart band endorsed by a global football superstar relies on MEMSIC’s flagship accelerometer MXC3500. Boasting three core industry-leading strengths: ultra-thin dimension, ultra-low power consumption and large FIFO, MEMSIC serves as its exclusive sensor supplier with mass shipments of millions of units.

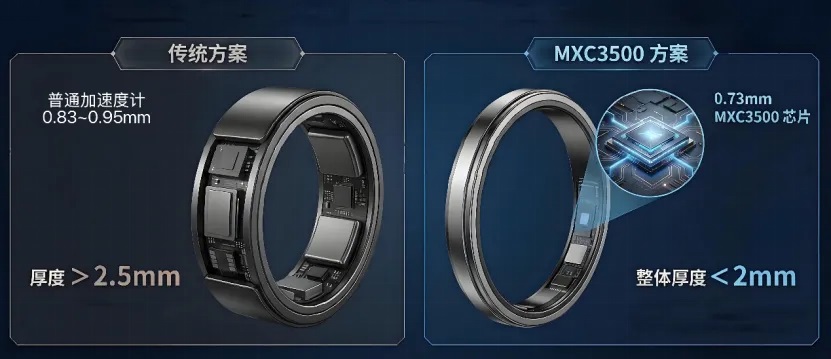

The smart ring market is poised for rapid growth and widely recognized for its “non-intrusive wearing” advantage. Compared with conventional smart bands, smart rings feature far tighter space constraints and smaller batteries, imposing stricter requirements for thinness and low power consumption and presenting unprecedented design challenges. The three standout strengths of the MXC3500 are fully amplified for smart ring applications, delivering a must-have sensing solution to address the industry’s pain points of ultra-small & ultra-thin form factor, extended battery life and high precision, making it the optimal choice.

Launched by MEMSIC in 2022, the MXC3500 capacitive accelerometer has been widely adopted and stably mass-produced by leading customers for years as a flagship product. Renowned across the industry for its 0.25 μA ultra-low power consumption, 0.73 mm ultra-thin package and 1.5 Kbyte large FIFO, it has become a classic device.

1. Ultra-Low Power Consumption for All Usage Scenarios

In SNIFF sniff mode, current consumption stands at only 0.25 μA at 2 Hz and 0.3 μA at 25 Hz. Even at the 100 Hz high sampling rate, power consumption is merely 3 μA, placing its ultra-low power performance at the top of the industry.

2. Deep Compatibility with Miniaturized Wearable Batteries

Custom-designed for 30–50 mAh small-capacity miniature batteries in smart rings, matching the low-voltage hardware power supply requirements.

3. Large-Capacity FIFO Optimizes System Power Draw

Equipped with a 1.5 KByte large FIFO buffer. It supports continuous all-day collection of health and motion data, while drastically reducing the frequency and duration of MCU wake-ups to further cut overall system power consumption at the hardware level.

4. Dramatic Battery Life Improvement

Compared with conventional accelerometers, smart rings integrated with this chip deliver over 3× longer total battery life.

MXC3500 Core Specifications & Multi-Scenario Adaptability

Beyond enabling ultra-slim device profiles and outstanding battery life for customers, the MXC3500 also excels in sensing precision, measurement range flexibility and embedded intelligent motion algorithms.

• Wide measurement range: Supports six selectable g-ranges ±2g / ±4g / ±8g / ±12g / ±16g / ±24g with 16-bit high resolution, capturing full motion profiles from subtle micro-movements to high-intensity activity.

• Intelligent motion engine: Embeds more than ten motion detection algorithms including AnyMotion, tilt, flip, tap, free fall and 6D orientation. It directly outputs gesture and attitude events, greatly reducing main controller computing load and power overhead.

• Low noise & high precision: Noise as low as 0.84 mg RMS, guaranteeing accuracy for micro-motion monitoring such as sleep and heart rate tracking.

• Flexible interfaces: Supports I²C (up to 1 MHz) and SPI (up to 10 MHz), compatible with mainstream low-power MCUs for easy integration and development.

With rich configurable capabilities, the MXC3500 perfectly fits three core application scenarios of smart rings:

1. Low-power standby (55% of daily wearing time): Continuous nanoampere-level low-power silent monitoring.

2. Sleep & health monitoring (30% of daily wearing time): Leveraging the ultra-low-power SNIFF standby mode and high-precision micro-motion sensing, it imperceptibly captures nighttime rollover and limb micro-movement details to accurately distinguish deep and light sleep cycles.

3. Precise motion tracking (10% of daily wearing time): High g-range and low-noise characteristics accurately capture motion postures such as walking, running and swimming, enabling reliable calculation of steps, calories and exercise intensity.

4. Non-intrusive gesture interaction (5% of daily wearing time): In normal operating mode, embedded single-tap / double-tap and shake gesture detection algorithms enable fast detection. The ring can act as a wireless controller to conveniently operate mobile phones and smart home devices, expanding non-intrusive interaction use cases.

As a globally leading MEMS sensor IDM manufacturer, MEMSIC maintains massive production capacity with hundreds of millions of accelerometer chips shipped annually and a quality system validated by numerous global top-tier customers.

Backed by 25 years of R&D and process accumulation and guided by the pursuit of excellence, the MXC3500 will drive innovation breakthroughs in the wearable market and deliver a more seamless, intelligent and long-lasting wearing experience for end users.
